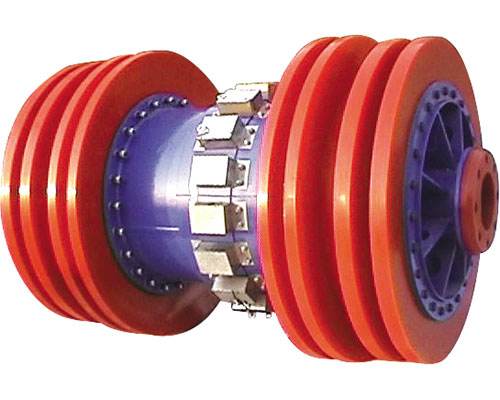

Polyurethane Pipe Cleaner

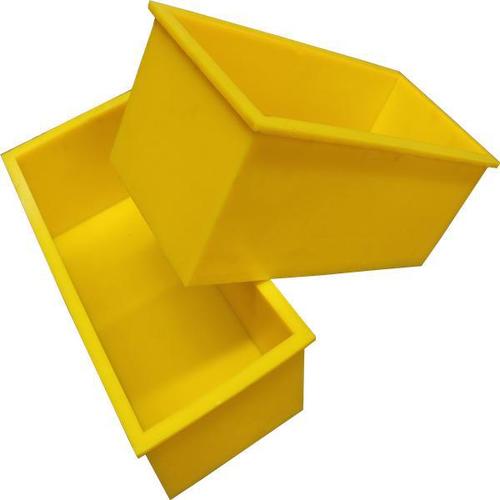

Polyurethane Turnover Box



Product Inquiry: Manager Liu 18553303677



Series Introduction:

by A 、 B 、 C Three components, A Polyol component, B Isocyanate-terminated prepolymer, C Is the curing agent. Mixture temperature: 45 ~ 50 ℃, vulcanization temperature: 80 ~ 95 ℃, demolding time: 30 minutes (adjustable via catalyst), the product has good wear resistance, resilience, weather resistance, good product toughness, flex resistance, low viscosity and good fluidity, high operability. Hardness can be adjusted by material ratio. It can be used to make rubber wheels, rubber rollers, impellers, sealing rings, sieves, pipe cleaners and some polyurethane elastomer parts.

Component
Characteristics

Model

YPU-66-A YPU-66-B DY3516-C
Operating Temperature (℃) 45 70 45
Op
er
at
ion 		Colorless and transparent liquid prepolymer YPU-66-A
Chain extender YPU-66-B﹢DY3516-C
Hardness (Shore A) 60 65 70 75 80 90 95
Quality of YPU-66-A 100 100 100 100 100 100 100
Quality of YPU-66-B 190 170 150 120 100 60 40
Quality of DY3516-C 8.6 9.5 10.4 11.8 12.7 14.5 15.4
Catalyst DY3516-D/(A+B+C)(%) 0.5 0.5 0.45 0.45 0.4 0.35 0.35
Mold Temperature (℃) 100
Gel Time (min) 6 6 5 4.5 4 3 3
Demolding Time (min) 50 40 35 30 30 30 30
Room Temperature Before Vulcanization (h) 6
Post-Vulcanization Time (h/100℃) 24
